reflex-vty

Build terminal user interfaces with functional reactive programming.

reflex-vty provides a Reflex FRP host and a library of reactive widgets for Vty terminal applications: layout, text input and editing, boxes, scrolling, mouse support, focus management, and theming.

A minimal app

{-# LANGUAGE OverloadedStrings #-}
module Main where

import Reflex.Vty

main :: IO ()
main = mainWidget def $ do
  text "Hello, reflex-vty! Press Ctrl+C to quit."
  ctrlc

mainWidget takes a VtyAppConfig (def for the defaults) and runs a widget until the Event t () it returns fires. Here that is ctrlc, which fires when the user presses Ctrl+C. Docs are available on Hackage.

Features

• Layout: arrange widgets into rows and columns (tile / grout) with fixed or proportional (stretch) size constraints.
• Focus: tab-cycling focus management across the focusable widgets in a layout (tabNavigation).
• Text: word-wrapped text display, rich text with per-span attributes, and single- or multi-line text input backed by a zipper that handles wide characters, tabs, and wrapping.
• Inputs: clickable buttons, hyperlinks, and checkboxes.
• Boxes: single, thick, double, rounded, ASCII, inner-half, and outer-half border styles, with optional titles and horizontal rules.
• Scrolling: scrollable containers with programmatic scrolling, auto-scroll-to-bottom mode, and a visual scrollbar with four visibility modes (always, thumb-only, while-scrolling, hidden).
• Split panes: fixed horizontal and vertical splits, plus a mouse-draggable splitter you can resize at runtime (splitVDrag).
• Mouse: button clicks, drags (with from/to/button/modifier tracking), scroll-wheel events, and last-known mouse-position tracking.
• Keyboard: individual key and key-combo events, plus input filtering.
• Runtime: alternate-screen mode, terminal cursor control (shape, visibility, and position), bracketed paste, terminal focus tracking, resize, and POSIX signal handling.
• Theming: a Theme record with presets (default, dark, charm, dracula, nord, zenburn, gruvbox). Widgets inherit the ambient theme and can override locally.
• Declarative styling: Lip Gloss-inspired Style type with foreground/background colors, text attributes (bold/italic/underline/etc.), padding, margin, borders with per-side colors, width/height constraints, alignment, text transforms, tab expansion, inline mode, whitespace coloring, and border presets.
• Color: RGB color type, operations (darken, lighten, complementary, mix, alpha), and gradients (Gradient1D, Gradient2D).
• Compositing: Reflex.Vty.Canvas module with per-cell transparency for overlays and layered rendering.
• Image composition: joinHorizontal/joinVertical/place utilities for composing rendered images.
• Color profiles: automatic terminal color-capability detection (TrueColor/Ansi256/Ansi16/Ascii/NoTTY) with downsampling.

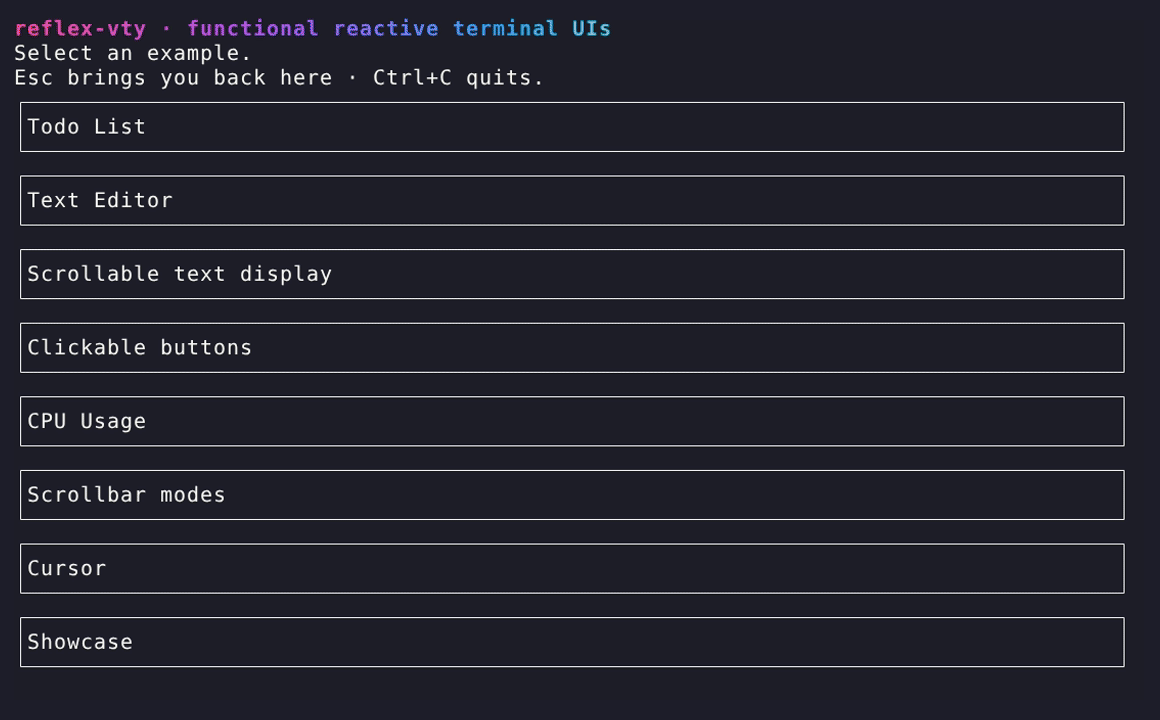

Run the bundled demo with cabal run example to see many of these in action: a text editor, a to-do list, scrollable text, clickable buttons, a live CPU-usage display with a true-color gradient bar, a scrollbar-modes demo, a terminal-cursor demo, and a little styling showcase featuring gradients, color operations, a canvas overlay, border presets, theming, and color-profile downsampling.

Example gallery

Each of these examples is a module in src-bin/Example/. You can run any of them with cabal run examples -- <name>.

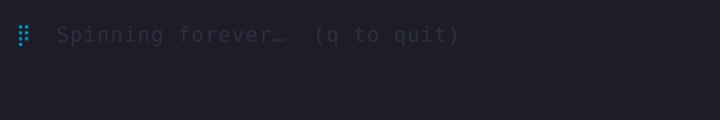

spinner — an animated braille spinner

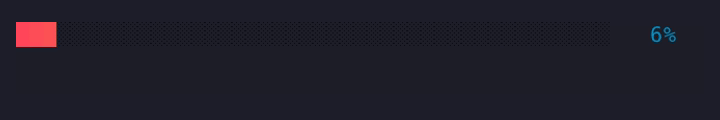

progress — a gradient-filled progress bar

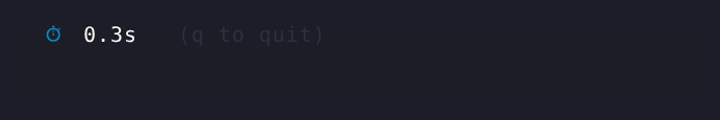

stopwatch — a tick-driven count-up timer

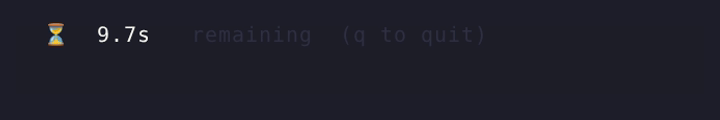

timer — a count-down timer

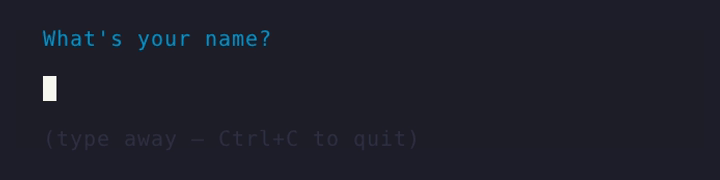

textinput — a focused text-input field

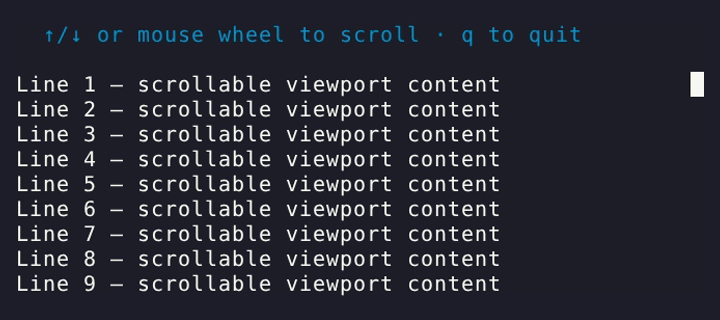

pager — a scrollable text viewport

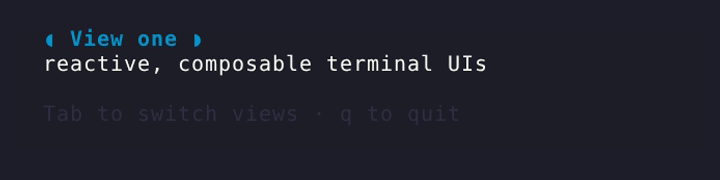

views — toggle between two views

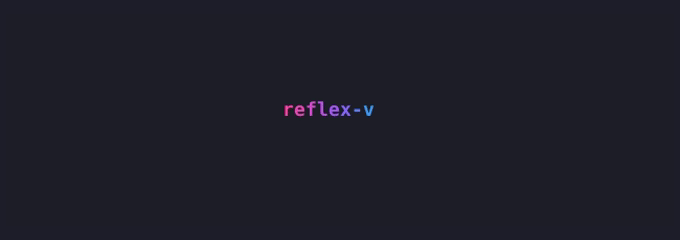

More demos: full-screen canvas animations (the classic Doom fire, a plasma field, a starfield, an animated splash) live on the examples page.

Feature requests, pull requests, and other feedback are welcome and appreciated (see the contribution guide).

How to Build

With reflex-platform

Enter a nix-shell for the project:

git clone https://github.com/reflex-frp/reflex-vty.git
cd reflex-vty
nix-shell

From within the nix-shell you can:

• Run the example: cabal run example
• Load the library in the repl: cabal repl reflex-vty
• Build the example executable: cabal build example
• Build the docs: cabal haddock
• Run ghcid for immediate compiler feedback when you save a .hs file: ghcid -c "cabal repl library:reflex-vty executable:example test:reflex-vty-test --ghc-options=-Wall" -o ghcid-output.txt
• etc.

Selecting a compiler

nix-shell defaults to GHC 9.8. The other compilers defined in release.nix are ghc94, ghc96, and ghc98. To enter a shell with one of them, pass it as the compiler argument:

nix-shell --argstr compiler ghc96

If you were previously building with a different compiler, you may need to run cabal clean first.

With cabal

Please see the tested-with field of the cabal file for known-compatible versions of GHC.

From the reflex-vty project directory:

# nix-shell -p cabal-install binutils icu # for nix users
cabal build          # to build the library, example, and test suite
cabal repl           # to enter a multi-repl covering all components
cabal repl example   # to enter a repl for the example executable only

About Obsidian Systems

reflex-vty is built and maintained by Obsidian Systems. We provide frontier engineering for high-assurance systems: we build production software in Haskell and Nix, and we're long-time stewards of open-source tooling like Obelisk, Reflex, and nix-thunk.

If you're working with Reflex, terminal or web UIs in Haskell, or Nix and want a partner to help design, build, or ship it, we'd love to hear from you.

• Website: https://obsidian.systems
• Blog: https://blog.obsidian.systems
• GitHub: https://github.com/obsidiansystems

License

reflex-vty is released under the BSD-3-Clause License, © 2018 Obsidian Systems LLC.
